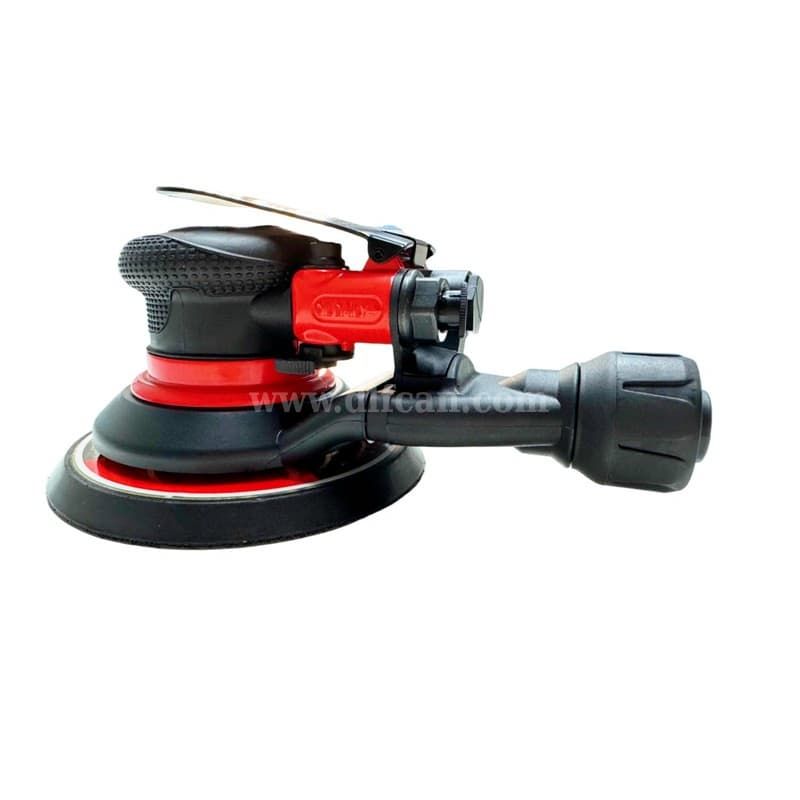

Air Orbit Sander DOS-1338PLUS
Professional 6-inch (150mm) dual-orbit pneumatic sander with switchable 5mm and 2.5mm orbit patterns for versatile material removal and ultra-fine finishing in a single tool. Lightweight aluminum body (0.98 kg), integrated dust collection, and 10,500 RPM free speed deliver consistent, swirl-free results in high-volume body shop environments.
Key Features
- Switchable Dual Orbit: 5mm (Removal) / 2.5mm (Fine Finish)
- 10,500 RPM Free Speed with 3.5 CFM Air Consumption
- Lightweight Aluminum Body — Only 0.98 kg
- Integrated Dust Collection System
Application Scenarios
- Primer Sanding & Material Removal (5mm Orbit)
5mm orbit delivers aggressive stock removal for leveling primer surfacer, body filler, and old paint — matching the cutting speed of Mirka PROS 650CV and 3M 5mm ROS. - Ultra-Fine Finishing & Pre-Polish (2.5mm Orbit)
Switch to 2.5mm orbit for swirl-free finishing between coats and final preparation before clear coat — eliminating the need for a separate finishing sander. - Dust-Free Sanding with Vacuum Extraction
Integrated dust collection connects to central vacuum systems, improving air quality, extending abrasive life, and maintaining surface visibility during sanding. - Two-in-One Tool for Body Shop Efficiency
Replaces the need for two separate sanders (Mirka PROS 650CV + 625CV) — one tool handles both removal and finishing, reducing tooling costs for distributors equipping multiple bays.
Technical Specifications
| Model | DOS-1338PLUS |

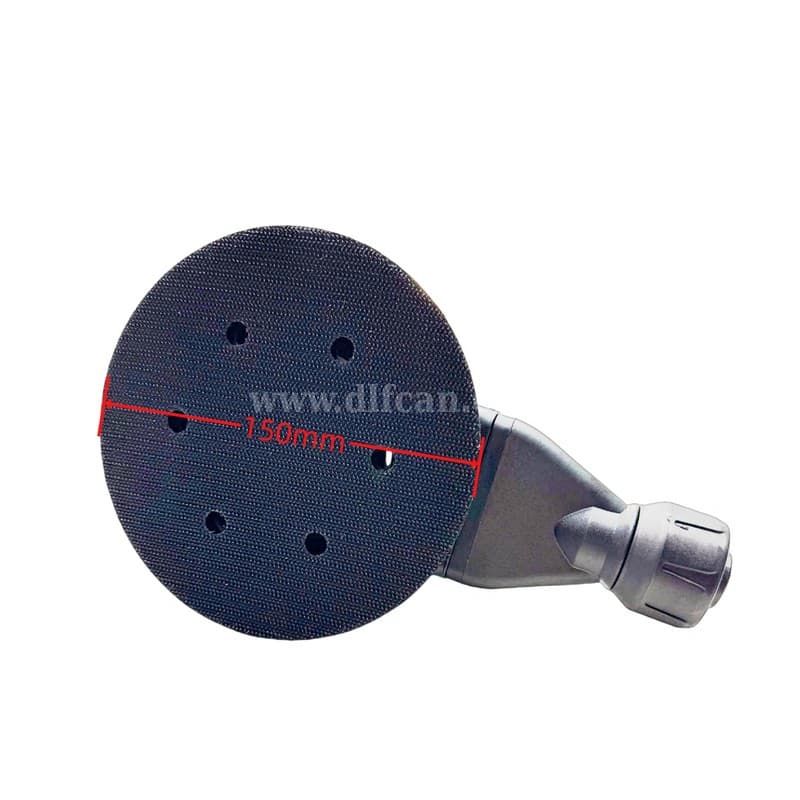

| Pad Size | 6" (150mm) |
| Orbit Diameter | 5mm & 2.5mm (Switchable) |
| Free Speed | 10,500 RPM |
| Avg. Air Consumption | 3.5 CFM |
| Weight | 0.98 kg |
OEM Customization
- Private label printing available
- Custom widths and lengths possible
- Custom paper core printing
- Flexible MOQ for distributors
