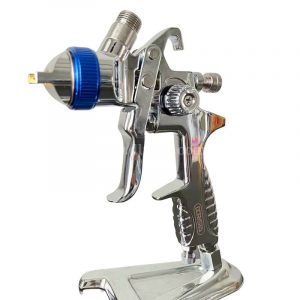

HVLP Gravity Spray Gun DSG-827
Classic 1.4mm HVLP production spray gun engineered for consistent automotive refinishing. Featuring high-durability stainless steel components and 43PSI working pressure, it delivers professional atomization and superior transfer efficiency for basecoats and clear coats.
Key Features
- Professional 1.4mm Precision Nozzle System
- High-Solid Compatible 43PSI Working Pressure
- Durable Corrosion-Resistant Stainless Steel Internals
- M16*1.5 Liner System Ready Adaptor
Application Scenarios
- High-Volume Automotive Refinishing:
Achieve high-gloss finishes on hoods, roofs, and full panels with stabilized 43PSI atomization for modern clear coats. - Commercial Fleet Maintenance:
Reliable performance for high-build coatings on vans and utility vehicles, ensuring durable and uniform surface protection. - Industrial Metal Coating:
Stainless steel construction withstands aggressive solvents used in industrial epoxies and top-tier metal finishes. - Multi-Coat Workshop Versatility:
Adapt to any job from primers to clear coats by utilizing the broad 1.3mm to 2.0mm optional nozzle range.
Technical Specifications
| Model | DSG-827 |
| Technology | HVLP (High Volume Low Pressure) |
| Standard Nozzle Size | 1.4mm |
| Optional Nozzle Size | 1.3 / 1.7 / 2.0mm |
| Working Pressure | 43 PSI |
| Air Consumption | 5 - 10 SCFM |
| Fluid Delivery | 100 - 220 ml/min |
| Spray Cup Adaptor Type | M16*1.5 internal thread |
| Air Inlet | G 1/4 |
| Pattern Size | 200 - 240mm |
| Paint Distance | 10 - 17cm |
| Cup Capacity | 600ml Plastic |
Available Sizes & Bulk Packing Options
| QTY/CTN | Carton Size (cm) | G.W./N.W. (kg) |
|---|---|---|
| 10 | 67.5 x 34 x 24.5 | 9.0 / 8.0 |
OEM Customization
- Private label printing available
- Custom widths and lengths possible
- Custom paper core printing
- Flexible MOQ for distributors
